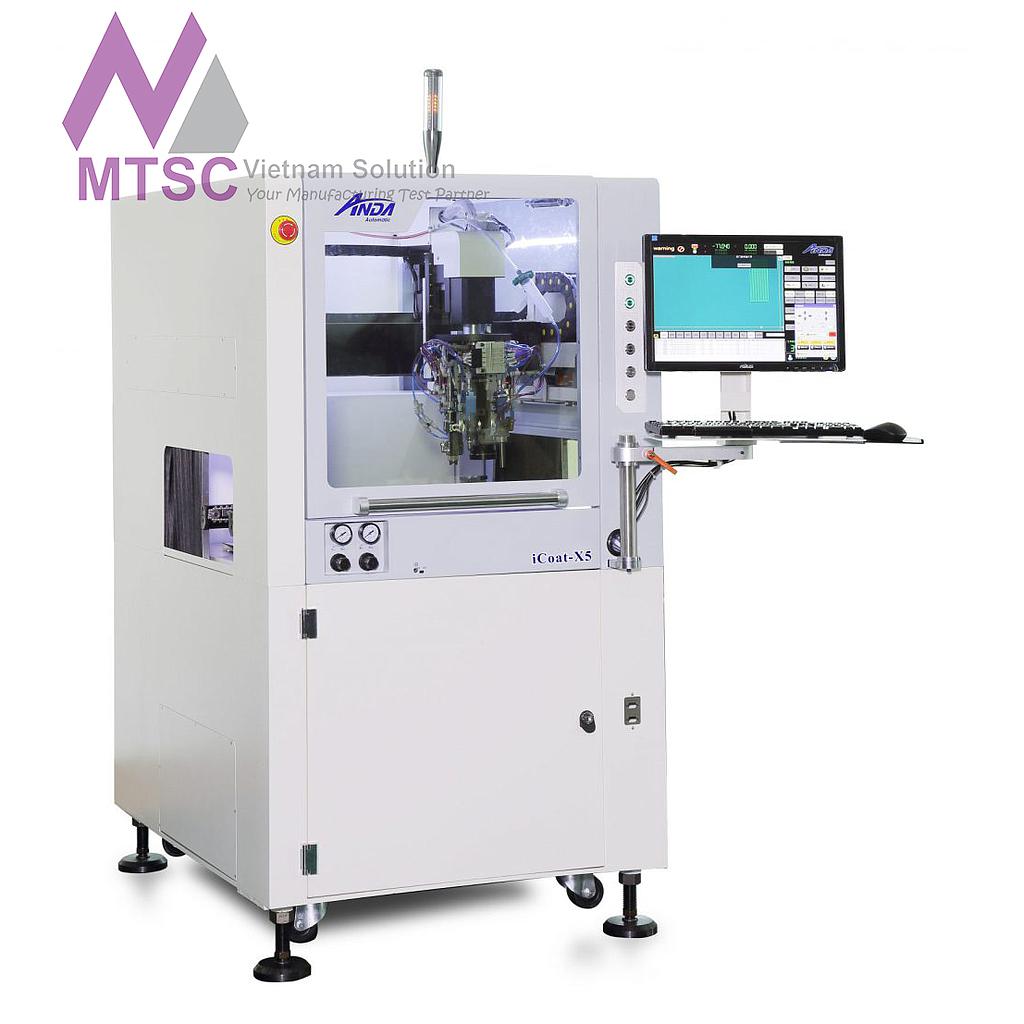

Anda Advanced Model iCoat-X5
Manufacturer: Anda Model: iCoat-X5 Guarantee: 12 Month - Contact
Two head configurations are available for the High Precision Selective Conformal Coating Machine:
A) Single head, 3 nozzles structure with 4 axis movement (X,Y,Z,U rotation) + 35° tilt is the most flexible work cell for a High Precision Selective Conformal Coating Machine to cater the most demanding coating application.
B) Twin heads, 4 nozzles structure with 3 axis movement (X,Y,Z) + 35° tilt to double the output with 2 PCBs simultaneously coated for achieving maximum productivity.
Standard Features
General machine comes with 2 nozzles (DJ-01 and SA-W5)
PC with LCD monitor, keyboard and mouse (Height Adjustable)
Auto dipping and purging waste collection system
LED UV lamps for inspection
PCB clamping system
10L material tank
UPS and voltage stabilizer
ESD grounding Point
CE Certified
Optional Features
Nozzles can be tilted 35º with 360º rotation
Heavy duty conveyor
Dual Lane conveyor system
2 stage conveyor
CCD vision camera
Material level detection
Pallet return conveyor (Underneath)
Barcode or 2D code scanning system
Material tank : 5L
ICOAT-X5 MACHINE SPECIFICATIONS
Power & Factory
- 220-240VAC Single Phase, 50/60Hz (3 wire);
Conveyor
Motion
Coating
