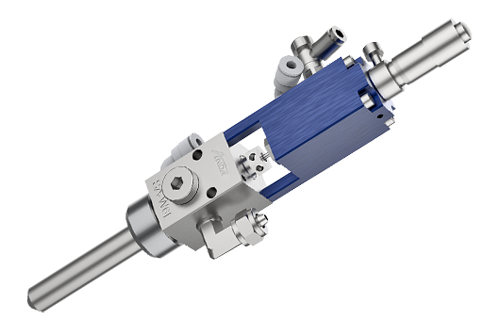

Anda SA-W6L Atomized Conical Spray Valve (0 - 0.5 Mpa, ≥ 400 per min)

Dimensions: 202 x 60 x 30 mm (8 x 2.4 x 1.2 in)

Weight:280 g

Viscosity Range: 30 – 3,500 cPs

Fluid Dispense Technology: Divorced Needle Valve with Atomization

Dispense Pattern: Cone Shaped

Dispense Width:4 ~ 12 mm (0.15 ~ 0.5 in)

Operating Pressure: 0.4 – 0.7 Mpa

Fluid Pressure:0 – 0.5 Mpa

Working Frequency: ≥ 400 per min

Medium:Clean Dry Compressed Air or Nitrogen (filtered & oil free)

Operating Temperature: Ambient

Control: High Speed Solenoid Valve

Fluid Inlet: Compression Fitting
