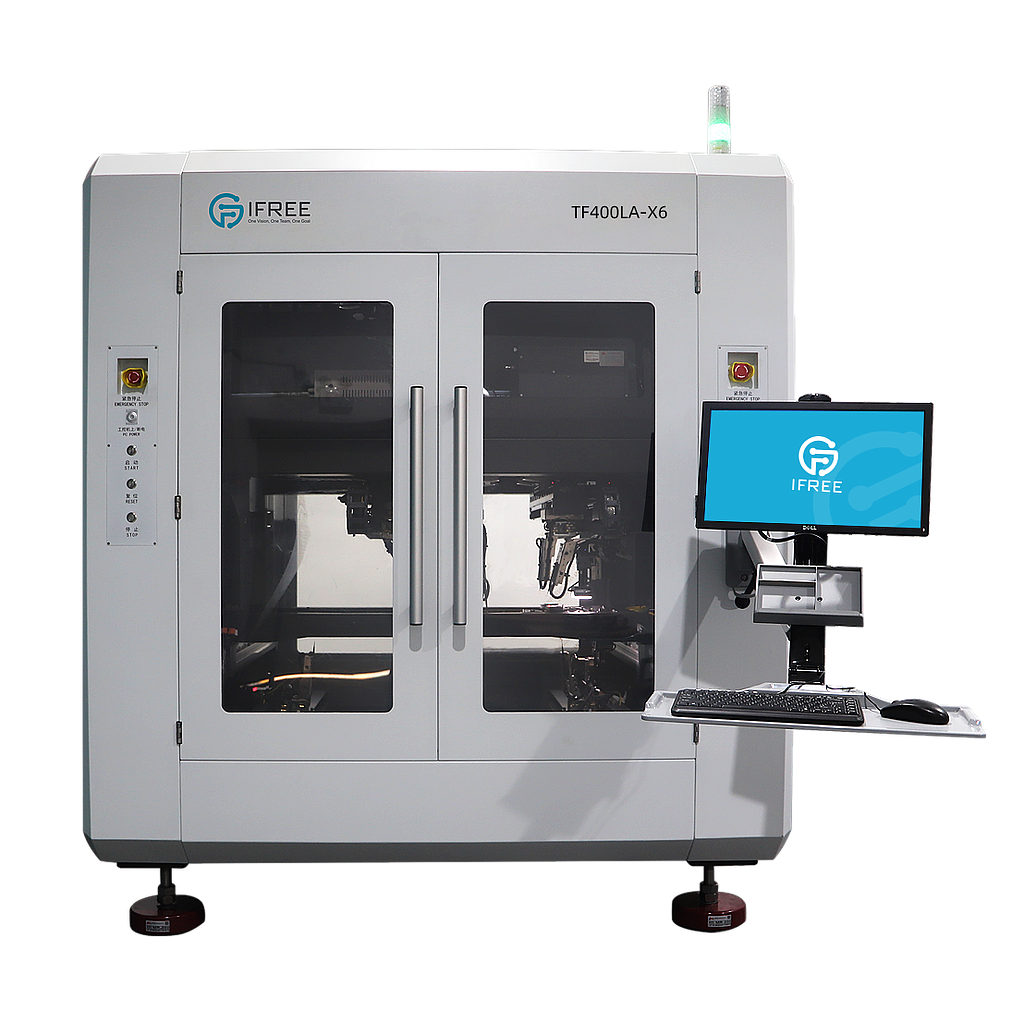

IFREE TF400LA-X6T Double-sided 6 Flying Probes Test System

  • Manufacturer:IFREE
    Model: TF400LA-X6T
    Origin: China
    Guarantee: 12 Month
  • Contact
    • Request a Quotation


Key Features




>>Double-sided flying probes (4 Top + 2 Bottom)
>>Best approaching accuracy to micro-MSD pad (008004)
>>AirTrack floating rail system, non-wear movement
>>Full test coverage
>>Double side test in parallel
>>Support LCRD in-circuit test
>>Support power-up, OBP, Boundary Scan, Open-Pin, LED test …
>>Support external measurement instruments
>>Support test with debug card

Capabilities




In Circuit Test

Optical Check

Node

Resistance

Barcode

5G Test

Functional Test

Open-Pin

Flatness

Check

Boundary

Scan

Power Up

OBP

Infrared Diag

LED Test

Testability

VI Curve

Technical Data




Application

NPI Prototype / Production Test




Probing side

Top & Bottom




Probe qty

6（Top4+Bottom2）




Probe force

80~200g




Speed

50 step/s




Repeated positioning accuracy

±0.0025mm




Acceleration

20g




Max PCB size (L x W)

520*450mm




Footprint (L x W x H)

1900*1550*1950mm

Details






  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment
