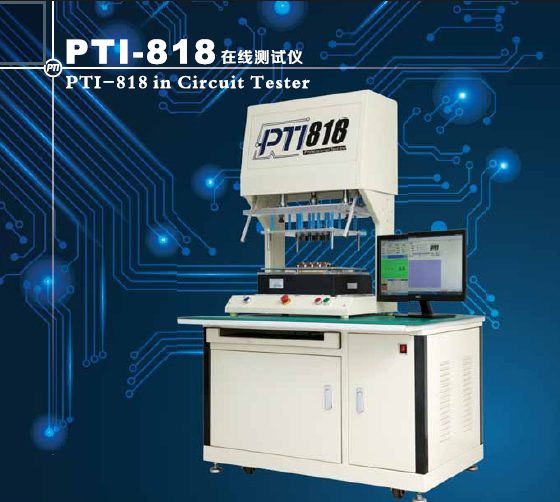

PTI PTI-818S In-Circuit Tester
Manufacturer: PTI Model: PTI-818S Origin: China Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Basic function:
Phase measurement technology
Optocoupler measurement technology
Current measurement technology
Multiple points measurement
Looking for equipotential isolation point automatically
High voltage detecting and discharging technology
Circuits of R,L,C components value measurement
16 input/output GPIO port
Module introduction:
Support xp/win7/win8/win10
Support multiple languages,Automatic identification screen resolution
Multi-report and Multi-board display interface
Perfect of self-test module,automatic testing and Strong self learning ability
On site management and remote assistance:
•Test data stored in the enterprise server
•Managers can know produce situation online at any time
•Products efficiency analysis to improve quality
•Connect outer net assist engineer to do PM&RM, improve production efficiency
On site management and remote assistance
System specification:
| Test Pin Point： | Standard Configuration：256 Point, Max extension 768point or 2048 point |
| System： | XP/WIN7/WIN8/WIN10 |
| Power Spec： | AC100V-120V ,200V-240V/50HZ-60HZ/350 |
| Test Method： | Manual press type, manual fixture type, automatic type |
| Test item : | maximum：100,000,Setps |
| AVR( DC voltage source) | 0—+/-10V Precision: 5mV |
| AVR (DC current source) | max:100mA precision: 10uA-1mA |
| AVR (AC voltage source) | 10Hz—1MHz precision: 1Hz-10Hz |
| DC voltage test | 0—+/-100V precision:3mV-50mV |
| DC current test | 10uA—200 mA precision: 1uA-1mA |
Test range and conventional precision:
| R | CC | （0.01Ω—40M）General：1%-3% |
| CV | ||
| Phase | ||
| L | A | （10uH—60H）General：1%-5% |
| Phase | ||
| C | A | （1PF—1F） General：1%-5% |
| DC | ||
| Phase |
| DC current | （1uA—-1A）（0.5%—5%） |
| DC voltage | （0—100v）（0.5%—3%） |
| Diode / transistor test | 16 groups of general GPIO |
optional:
| Open testing TESJET technology | Update measurable smaller IC and connector |
| Frequency test | max 200MHz precision: 1Hz-50Hz |
| LED color and light measurement module | |
| Audio analyzer | Audio analyzer and Signal to Noise ratio、THD and THD + N analyzer |
| Support external EPROM, electronic load and oscilloscope. |
DUT power module:
| 1 set High voltage DC constant current power supply: | 10uA-100mA/100V(MAX) |
| 1set High voltage DC constant voltage power supply: | 10V-100V/100mA(MAX) |
| 2 sets AVR (voltage source): | 1-20V, 0.5A-2A,10Watt, current measurement 10uA-2A (Constant voltage current limiting) |
| 4 sets fixed output power: | +12V, -12v ,+5v, +24v /1000mA（MAX） |
| Supports external AVR: | USB/GPIB/COM external AVR |
serial test module:
| 2 sets serial test channel, rate can be up to 1 m | |
| Serial communication protocol: | IIC,SPI,UART |
| Boundary scan function: | JATG interface scan and functional test |
| A 16-bit digital IO port: | Vih:0.8-4.6V;Voh:0.1-4.9V |
| Pneumatic : | cylinder bore 100mm,cylinder stroke 200，maximum pressure：470kg/6Bar |
| Air pressure: | 4-6kg/cm2,：4Liter/Cycle |
| Environment: temperature: | 0℃-40℃，Operating humidity:20%-80% |
| Size: | （Small frame）：350mm（L）*280mm（W）*300mm（H） |
| （MAX frame）：520mm（L）*280mm（W）*380mm（H） | |
| Size: | 1000mm（L）*900mm（W）*1900mm（H） |
