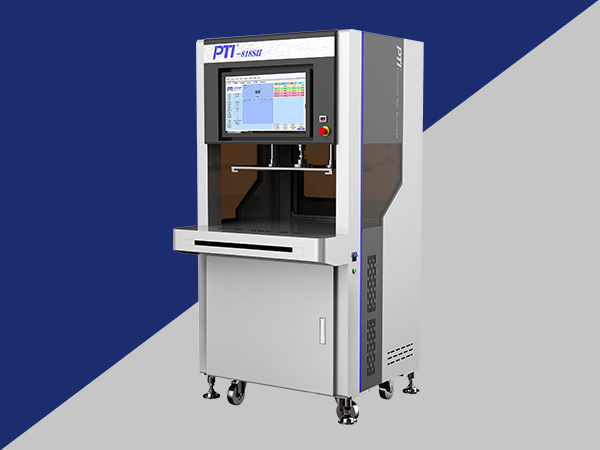

Phát hiện lỗi Board mạch PTI PTI-818SⅡ
Hãng sản xuất: PTI Model: PTI-818SⅡ Xuất xứ: Trung Quốc Bảo hành: 12 Tháng - Liên hệ
SUMMARY
PTI-818SII, It is a new generation of online tester launched by PTI in 2020. It has been upgraded and optimized in terms of overall product structure, operational safety, test diversity, and system intelligence.
■ Integrate more functional modules (frequency, insulation, audio, CAN bus,
boundary scan module.
■ Upgraded version of a more general programming module, supporting 70% chips.
■ Universal, easy-to-use external instrument calling platform.
System specification
| Test point： | Standard:256 points ;max:4096 points |
| system： | Windows7-10 |
| Power Spec： | 200-240VAC,Single Phase,50/60Hz 3KVA |
| Air Requirement： | 4-8kg/cm2; 15liters/cycle |
| Environment： | Temperature:0℃-40℃ Operating Humidity:20%-80% |
| Fixture Type： | Manual type; Press type:Inline type |
| Open/short Test： | 1000point<1S，Innovation algorithm |
| Component Test： | 0.5ms-30ms |
| PCBA Size： | 450mm（W）-300mm（L）-100mm(H) |
| Resistance： | 0.01mΩ－40MΩ |
| Capacitance： | 10PF-60MF |
| Inductance： | 10uH-60H |
| Programmable DC Voltage Source：±10VMAX,Resolution:10mV Programmable DC Current Source：100mA MAX,Resolution:0.2mA Programmable Frequency：100Hz,1KHz,10KHz,100KHz DC Voltmeter：0±100V Resolution:3mV-50mV DCAmmeter：1uA-50mA Resolution:30nA-50uA | |
| Optional Function Printer Romote contorl and monitoring MES API | |
