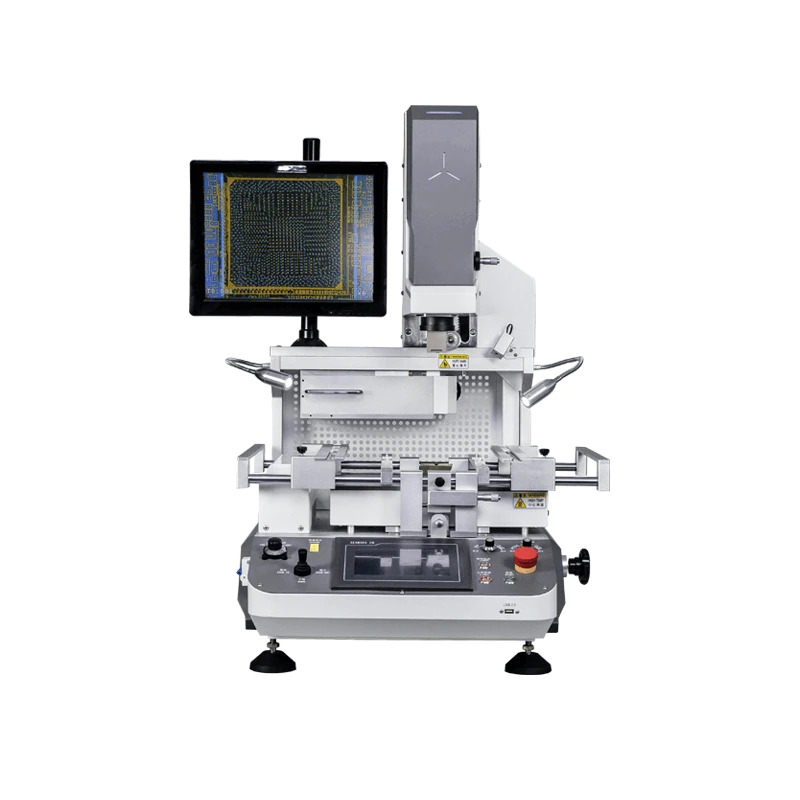

Seamark ZM ZM-R7220A BGA Rework Station With Optical Alignment (Max 5300W)
Manufacturer: Seamark ZM Model: ZM-R7220A Guarantee: 12 Month - Contact
Power: AC 220V±10％ 50/60 Hz
Total power: Max 5300W
Heater power:
- Top heater: 1200W
- Bottom heater: 1200W
- IR heater: 2700W
Electrical materials: Intelligence Programmable controller, support connect computer
Temperature control: K-type thermocouple (Closed Loop), independence temperature control, accuracy within±1℃
Positioning: V-groove, PCB support
PCB size:
- Max 415×370 mm
- Min 6×6 mm
BGA chip:
- Max 60×60 mm
- Min 2×2 mm
Dimensions: L680×W640×H960 mm
Sensors: 1 pc
Weight: 79kg
Color: white
