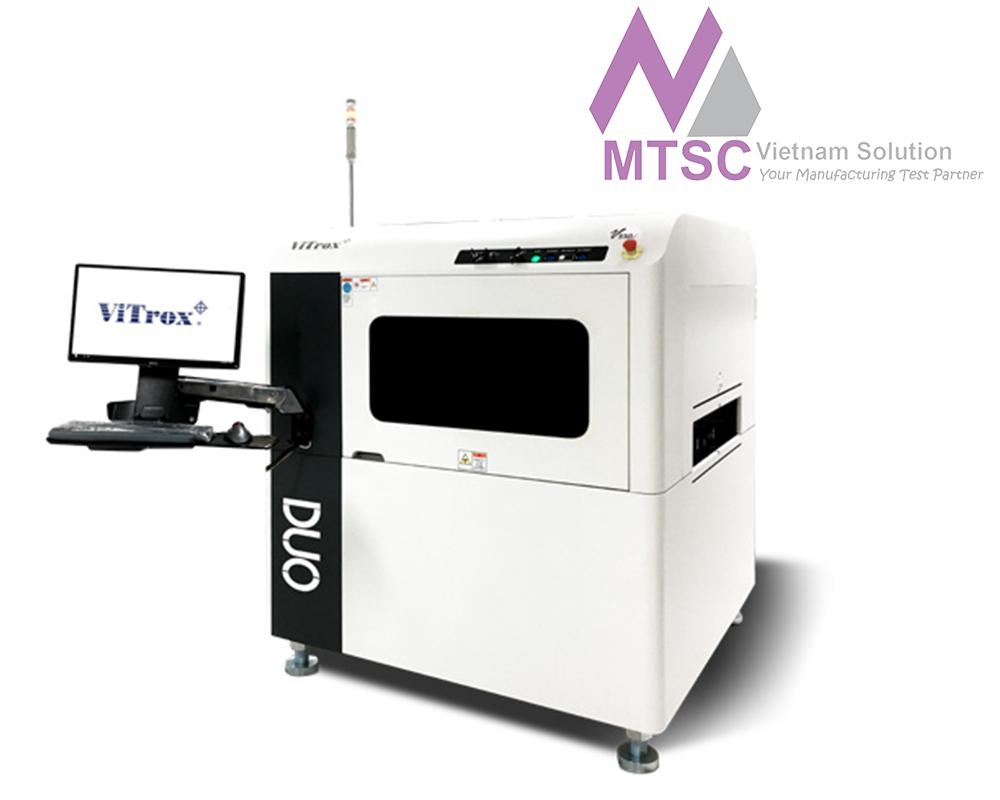

Máy nghiệm thu hàn dán Vitrox V510i DUO

Hãng sản xuất: Vitrox

Model: V510i DUO
Bảo hành: 12 tháng

V510i DUO : Advanced Optical Inspection (AOI)

The V510i DUO AOI is a next generation solution for the SMT line, one click 2D+3D algorithms auto conversion.

2D MODE

PCB Dimension

Minimum PCB Size (L x W): 30x30mm (1.2”x1.2”)

Maximum PCB Size (L x W): DL Equal: 330x235mm (13”x9.2”); Single Lane: 330x420mm (13”x16.5”)

PCB Thickness: 0.5mm-4mm (0.02”-0.16”)

Maximum PCB Weight: 3kg (6.6lb)

Clearance

Top Side of PCB: 50mm (2”)

Bottom Side of PCB: 70mm (2.76”)

Panel Edge: 3.5mm (0.14”)

Maximum PCB Warpage Compensation: ±5mm (0.2")

PCB Transport Height: 856mm - 965mm (33.7”x38”)

System Performances

2D Inspection Functions: Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection)

3D Inspection Functions: Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement

Height Accuracy (Based on ViTrox Calibration Jig): ±2µm

System Hardware: 2D

Inspection Speed: 4MP @ 19μm resolution: 40-55cm²/sec

Camera & FOV Size: 4MP Camera Link Camera 38.5mmx38.5mm @ 19μm resolution

Optical Resolution: Default: Scalable from 21μm to 8μm for 01005 inspection

Lighting Module: Multiple Color, Multiple Angle, Multiple Segment LED Lighting Head, Auto Calibration

Installation Specification

Width: 1340mm (4.4ft)

Depth: 1500mm (4.9 ft)

Height: 2060mm (6.8ft)

Weight: ~1100 kgs

Electrical Supplies: 100-120 V, 16A/200-240V, 8A Single Phase

3D MODE

PCB Dimension

Minimum PCB Size (L x W): 50x50mm (2”x2”)

Maximum PCB Size (L x W): DL Equal: 330x235mm (13”x9.2”); Single Lane: 330x420mm (13”x16.5”)

PCB Thickness: 0.5mm-4mm (0.02”-0.16”)

Maximum PCB Weight: 3kg (6.6lb)

Clearance

Top Side of PCB: 50mm (2”)

Bottom Side of PCB: 70mm (2.76”)

Panel Edge: 3.5mm (0.14”)

Maximum PCB Warpage Compensation: ±5mm (0.2")

PCB Transport Height: 856mm - 965mm (33.7”x38”)

System Performances

2D Inspection Functions: Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection)

3D Inspection Functions: Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement

Height Accuracy (Based on ViTrox Calibration Jig): ±2µm

System Hardware

Inspection Speed: 4MP @ 20μm resolution: 22-37cm²/sec

Camera & FOV Size: 4MP Camera Link Camera 40mmx40mm @ 20μm resolution

Optical Resolution: Default: 20μm telecentric lens; Option: 11μm telecentric lens

3D Technologies: Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors

Lighting Module: Concurrent Lighting Module

Installation Specification

Width: 1340mm (4.4ft)

Depth: 1500mm (4.9 ft)

Height: 2060mm (6.8ft)

Weight: ~1100 kgs

Electrical Supplies: 100-120 V, 16A/200-240V, 8A Single Phase
