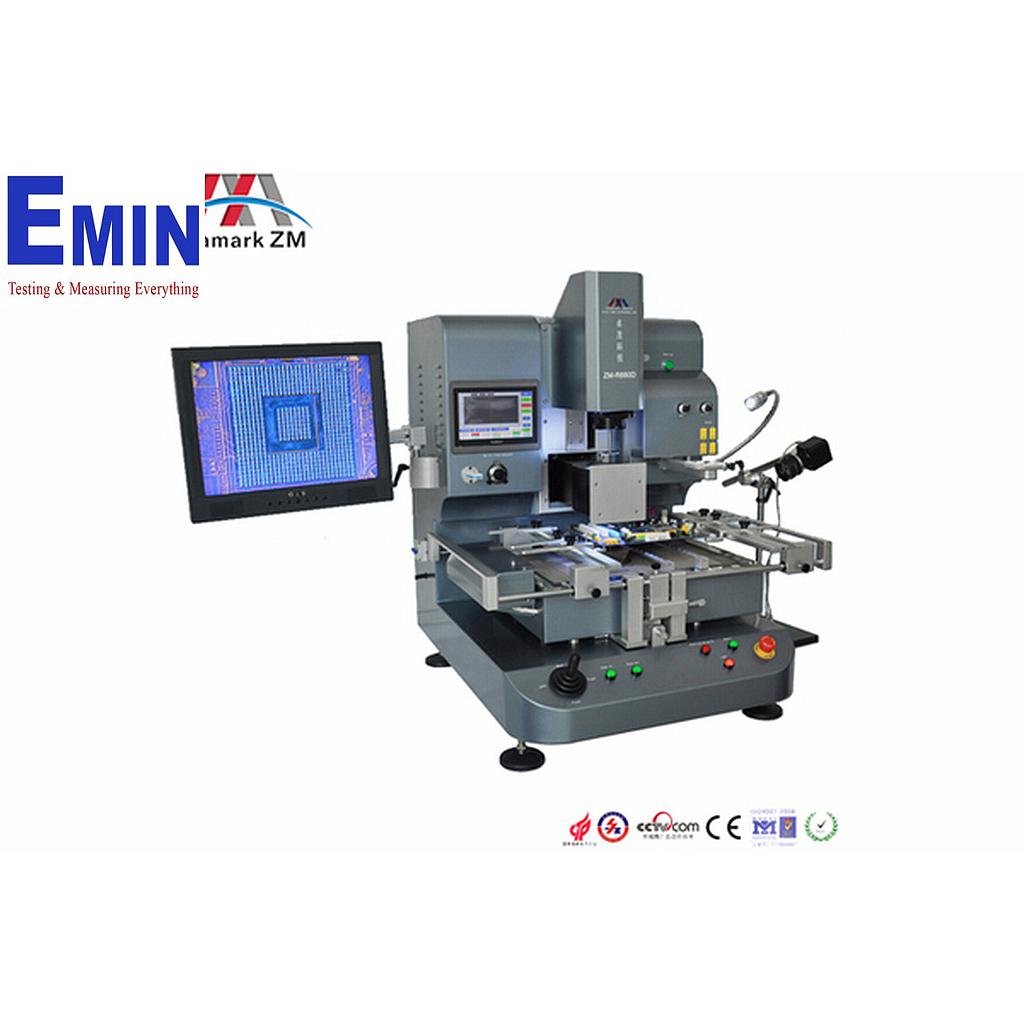

Máy hàn tự động Chipset BGA ZHUOMAO ZM-680D

Hãng sản xuất: ZHUOMAO
Model: ZM-680D
Xuất xứ: Trung Quốc

Tích hợp màn hình LCD cảm ứng điều khiển, Camera căn chỉnh
Tổng công suất:  Max 5800W
Công suất cung cấp: AC220V±10%     50/60Hz
Bộ nhiệt trên:1200 W
Bộ nhiệt dưới: 1200 W
Bộ nhiệt IR: 3300 W
Thiết bị điện: Servo Drive( Panasonic)+Touch screen( Taiwan)+Panasonic PLC+Heating plate(Germany)
Điều khiển nhiệt độ : Kiểu K ( vòng kín )
Định vị : Rãnh V, hỗ trợ PCB
Kích thước PCB : Max 400×450mm Min 10×20 mm
Kích thước chip: 2×2-80×80mm
Hệ thống quang học : điều khiển Joysticks, Motor drive, hệ thống hình ảnh CCD HD
Màn hình chạm : 7.0", độ phân giải 640X480, màn hình chạm Panel Visa, giao diện USB ngoài
Kích thước: 650×800×790mm ( không tính LCD stand )
Cảm biến nhiệt ngoại: 4pc
Trọng lượng tịnh: 80 kg

Chi tiết

Option Nozzle:
- Nozzle  8x8mm : 1,125,000 VNĐ
- Nozzle 10x10mm  : 1,125,000 VNĐ
- Nozzle 12x12mm  : 1,125,000 VNĐ
- Nozzle 15x15mm  : 1,125,000 VNĐ
- Nozzle 18x15mm : 1,125,000 VNĐ
- Nozzle 20x20mm : 1,125,000 VNĐ
- Nozzle 24x24mm : 1,125,000 VNĐ
- Nozzle 25x25mm : 1,125,000 VNĐ
- Nozzle 28x28mm : 1,125,000 VNĐ
- Nozzle 31x31mm : 1,125,000 VNĐ
- Nozzle 35x35mm : 1,125,000 VNĐ
- Nozzle 36x36mm : 1,125,000 VNĐ
- Nozzle 38x38mm : 1,125,000 VNĐ
- Nozzle 41x41mm : 1,125,000 VNĐ
- Nozzle 45x45mm : 1,125,000 VNĐ
- Nozzle 48x48mm : 1,125,000 VNĐ
- Nozzle 50x50mm : 1,125,000 VNĐ
- Nozzle 55x55mm : 1,125,000 VNĐ
- Nozzle 60x60mm : 1,125,000 VNĐ
- Nozzle 65x65mm : 1,125,000 VNĐ

Main Features:

1, Panasonic servo drives, joystick control, micrometer adjustment, X-shaped infrared laser positioning ,6-8 Rapid heating and cooling settings, automatic feeding ,feeding systems are optional;

2,There are 3 independent heaters. The 1stand 2ndhot-air heaters can control multiple groups and segments temperature parameters. The 2ndheater can move up and down. The 3rdlarge area IR heater can preheat the PCB board fully to ensure no deformation to the board. Temperature, time, slope, cooling, alarming all can be displayed on the touch screen.

3,High-precision K-type thermocouple with closed loop control,automatic temperature compensation system, combined with Panasonic PLC and highly sensitive temperature module for the precise temperature control, the temperature error controlled within ± 1 degree; The external 4 sensors can detect temperature precisely, analyze and calibrate the real temperature curve accurately;

4,V-groove PCB support, rapid positioning, convenience, accuracy, can fit for all kinds of PCB board;

5,Flexible and removable universal fixture has protective effects and no damage to the PCB board, suitable for all kinds of BGA repair.

6,The top heater device and mounting head are integrated design, ball screw driveand Z-axis movements are controlled by Panasonic servo system which can accurately control the site and hot spots; with different size alloy BGA nozzles, 360 degree rotation, easy to install and replace, customized is available;

7, High-definition CCD color optical vision system, splitting, amplification, micro-adjust and auto-focus; With automatic color resolution and brightness adjustment device; it can adjust the definition of the image automatically;

8,Without changing the magnification, the optical lens can be moved manually left and right, back and forth freely. It can observe all aspects of the BGA chip. It displays clearly. The X, Y axis and R angle with micrometer adjust, precise positioning, alignment accuracy is within ± 0.01MM, 15〃TFT LCD Monitor;

9, CE certification, with emergency switch and automatic power-off protection device when emergency happens; With protective mesh to prevent components falling or human burns happen;

10, Mounting, welding and desoldering process are intelligent controlled and work automatically; BGA mounting position is controlled accurately; after finishing desoldering and soldering, there is alarming. When temperature goes out of control, the circuit w automatically power off;

11,It can save multiple groups profiles. You can analyze, set and calibrate the temperature parameters curve on the screen at any time. You can print, save and analyze the curve through the USB port without other external devices (such as computer).

12,powerful cross-flow fan to cool the PCB board automatically after desoldering and soldering, it can prevent the deformation of PCB board to ensure the welding effect;

13,human-machine interface, high-definition touch screen(Taiwan), PLC control, password protection and calibrate function, can show seven temperature curves and save multiple profiles, instant curve analysis function;

14,With Multi-functional and humanized operation interface, there is "set up Interface" and "operation interface" on the touch screen to prevent wrong operations and setting; Temperature parameter has password protection to stop arbitrary changes;

15,After finishing desoldering and soldering with a double over-temperature protection, there is alarming. When temperature goes out of control, the circuit automatically power off;

16,This machine is equipped with pressure and optical sensors. to control the pressure in 3-10 grams and optical switches, so that it can automatically recognize the suction chip and mounting height, to ensure not crush BGA chip;It can repair Socket775 and double BGA / CGA / IC and various shielding devices, meet the requirement of lead-free process.



Total Power



Top heater



Bottom heater

2nd  heater 1200W,3rdIR heater 3300W



AC220V±10%     50/60Hz



650×800×790mm(LCD stand not included)



V-groove, PCB support can be adjusted in any direction and with external universal fixture




K-type thermocouple (Closed Loop), heating independently, temperature precision within ±1 degree


PCB size

Max 400×450mm Min 10×20 mm




Servo Drive( Panasonic)+Touch screen( Taiwan)+Panasonic PLC+Heating plate(Germany)






Optical system

Joystick control, Motor drive, CCD color high-definition imaging system


BGA chip



Touch screen

7.0〃,Resolution 640X480, Panel Visa touch screen, external USB interface


External temperature sensor



Work Mode

Power drive


Placement Accuracy

X, Y axis and the R angle with micrometer adjust, accuracy within ± 0.01MM


Net weight
