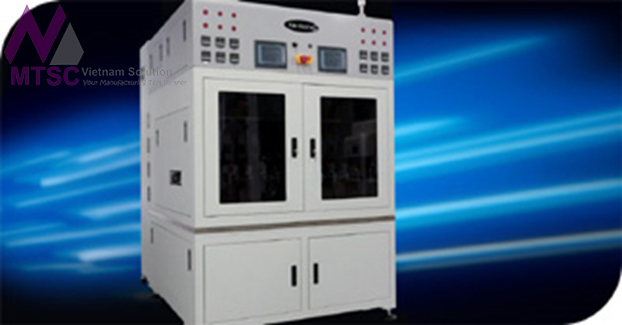

Universal Instruments Flexbond Hot Bar Bonding Platform
Manufacturer: Universal Instruments Model: Flexbond Guarantee: 12 Month - Request a Quotation
- Contact
Manufacturer: Universal Instruments - USA
Model: Flexbond
Warranty: 12 months
The Flexbond™ high-throughput hot bar bonding platform enables the first fully automated volume solution for advanced flex circuit and other hot bar interconnect applications. It combines with Universal Instruments’ Fuzion® Platform for full-process integration, including flux transfer, high-accuracy placement and hot bar soldering.
These configurable solutions have been shown to provide 6X to 12X the throughput of traditional semi-automated assembly stations and more than twice that of alternative automated hot bar solutions while reducing floor space requirements by 80%. They also require significantly fewer machines and offer the lowest OPEX and $/cph/m2.
The first high-throughput automated hot bar bonding platform
Industry-best performance and a maximum bonding rate of 1800 UPH
Dual-zone parallel processing with up to 6 heads per zone, 12 heads total (4X alternative solutions)
Programmable, closed-loop temperature control ensures alignment with solder profiles
Under-board constant heat balances thermal load for flex-to-flex applications
Programmable pressure settings and high-accuracy management provide superior bonding control
Conveyor-style architecture with adjustable width adapts to range of applications
FLEXBOND SPECIFICATIONS
